En este modelo se pueden realizar unos test de sensores para ver si alguno está fallando, también son ópticos, por lo que si se utiliza la cámara de un movl (que no se Iphone) se puede llegar a ver la luz infraroja.
Os paso informacon para realizar también el test de sensores Redi Sensor.

Paper jam troubleshooting

The following sections in this document contain steps for troubleshooting paper jams in different locations along the paper path in the printer.
Before you begin troubleshooting, determine whether or not you know the location of the paper jam and then proceed with one of these strategies:
  • If the error message displayed on the printer control panel references a specific location for the jam (such as Tray 2), find the section below for that jam location and follow the steps provided to clear the jam.
  • If you do not know the location of the jam and it is not specified in the error message on the printer control panel, try the steps in each section below to find and clear the jam. If any of the steps resolve the jam, you do not need to continue troubleshooting.
   NOTE:
If the jam error persists after trying all the procedures in this document, refer to the following support document Paper jams that result in a whole unit replacement (WUR) (Emerging Issue) for instructions to escalate the case to ATS/Support Engineers Level 2.
Clear jams in the document feeder and scanner (MFP models only)
Use the following steps to clear a paper jam in the document feeder and scanner:
   NOTE:
If a unit has frequent jams while printing or using the document feeder, ensure that the paper guides are set correctly for the paper being used.
  1. Press the Power button to turn off the printer.
    Figure : Power button
  2. Open the document feeder cover.
    Figure : Open document feeder cover
  3. Lift the document feeder roller assembly, and then gently pull the jammed paper out.
    Figure : Lift the rollers and remove jammed paper
  4. Close the document feeder cover.
    Figure : Close document feeder cover
  5. Open the scanner lid. If paper is jammed behind the white plastic backing, gently pull it out.
    Figure : Remove jammed paper under scanner lid
  6. Try printing a test page.
    • If the test page prints successfully, you do not need to continue troubleshooting.
    • If the test page does not print and the paper jam issue persists, continue to the next section to try to clear the jam.
Clear jams in Tray 1
When a jam occurs in Tray 1, a "Tray 1 Paper Jam" message displays on the printer control panel.
   NOTE:
These jams occur in the C and D paper path zones.
Figure : Tray 1 Paper Jam message
   NOTE:
If the unit is experiencing multi-pick jams, refer to the Clear multi-pick or mis-pick jams (in Trays 2, 3, or 4) section in this document.
Follow these steps to clear a jam in Tray 1:
  1. Open Tray 1 (multipurpose tray) on the lower left side of the printer and look for any paper stuck in the unit.
  2. If the jammed sheet is visible and easily accessible in Tray 1, pull it from Tray 1.
       NOTE:
    If the sheet tears, make sure that all the fragments are removed before you resume printing.
    Figure : Remove the jammed sheet from Tray 1
  3. The jammed sheet might also be accessible by removing Tray 2. If so, remove the jammed sheet by pulling it to the right and then out of the printer.
    Figure : Remove the jammed sheet from Tray 2
  4. If the jammed sheet is not visible or easily accessible in Tray 1, open the left door to access the jammed sheet.
    Figure : Open the left door
  5. If the paper is still not visible or accessible, remove the Ink Collection Unit (ICU)/duplexer by pulling it out with one hand and keeping it level to prevent unwanted ink spills. Set the duplexer aside, upright, on a piece of paper to prevent ink spills.
       CAUTION:
    When pulling out the ICU/duplexer, avoid making direct contact with the black cylinder to prevent ink smear on skin or clothes.
    Figure : Remove the ICU/duplexer
  6. Press down on the green tab to lower the platen. The printer will turn the feed shaft to try to feed the sheet through the print zone. You might need to gently pull on the jammed sheet if it does not feed through entirely.

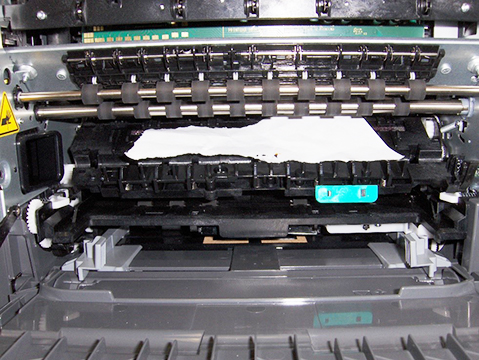

    Figure : Gently pull the jammed paper towards you
  7. Lift the green tab to place the platen back into its operating position.
    Figure : Lift the green tab
  8. Reinsert the ICU/duplexer.
    Figure : Reinsert the ICU/duplexer
  9. Close the left door.
Clear jams in Tray 2
When a jam occurs in Tray 2, a "Tray 2 Overfilled or Jammed" message displays on the printer control panel.
Figure : Tray 2 Overfilled or Jammed message
Figure : Paper jam in Tray 2
   NOTE:
If the unit is experiencing multi-pick jams, refer to the Clear multi-pick or mis-pick jams (in Trays 2, 3, or 4) section in this document.
Use the following steps to clear a jam in Tray 2:
   NOTE:
This is the zone E paper jam area.
  1. Remove Tray 2 from the printer by pulling it out and releasing the latch at the rear left of the tray.

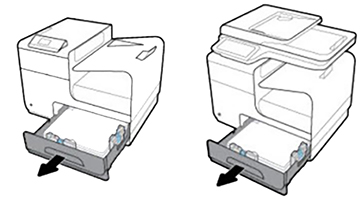

    Figure : Open Tray 2
    SFP models: PageWide 352, 452, and 552
    MFP models: PageWide 377, 477, and 577
  2. Using a flashlight look for paper in the pick tire area. Carefully remove the jammed sheet by pulling it to the right and then out of the printer.
       NOTE:
    Always try to remove the paper in the direction of normal page flow.
    Figure : Remove the jammed sheet from Tray 2
  3. If the jammed sheet does not come out easily, or if it tears, open the left door on the printer and remove the ICU/duplexer. This will release the pressure on the paper so you can easily pull the jammed sheet out through Tray 2.

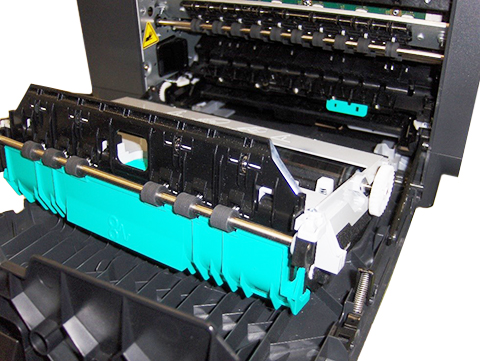

    Figure : Remove the ICU/duplexer
  4. Once you remove the jammed sheet and any scraps of paper, reinsert the duplexer and close the left door.
    Figure : Reinsert the ICU (duplexer)
  5. Make sure that Tray 2 is not overfilled will paper as it will cause multiple paper picks, paper jams, and smear issues.
       NOTE:
    The stack of paper should not be higher than the stop ledge in the paper tray.
    Figure : Example of paper loaded correctly (below the stop ledge)
  6. Reinsert Tray 2 in the printer and carefully push it inward to close it.
       NOTE:
    When closing the tray, push in the middle or with even pressure on both sides. Avoid pushing on one side only.
    Figure : Close Tray 2
  7. Try printing a few test pages.
    • If the test pages print successfully, you do not need to continue troubleshooting.
    • If the test page does not print and the paper jam issue persists, continue to the next section to try to clear the jam.
Clear jams in optional Tray 3 (or Tray 4)
Use the following steps to clear a jam in Tray 3 (or Tray 4). The steps for clearing a jam in Tray 4 are the same as the steps for Tray 3.
   NOTE:
These steps apply only if you have optional trays installed on your printer. Optional trays are not available for all models.
   NOTE:
If the unit is experiencing multi-pick jams, refer to the Clear multi-pick or mis-pick jams (in Trays 2, 3, or 4) section in this document.
  1. Open Tray 3 (or Tray 4).

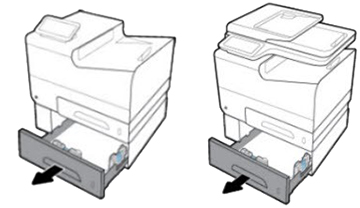

    Figure : Open Tray 3

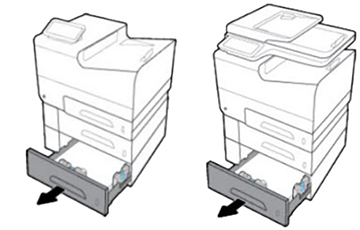

    Figure : Open tray 4
  2. Remove the jammed sheet by pulling it to the right and then out of the printer.
    Figure : Remove the jammed sheet
  3. If the jam cannot be cleared at the tray, try clearing the jam from the Tray 3 (or Tray 4) left door.
    Figure : Clear jam from the Tray 3 (or Tray 4) left door
  4. Close Tray 3 (or Tray 4).
       NOTE:
    To close the tray, push in the middle or with even pressure on both sides. Avoid pushing on one side only.
    Figure : Close Tray 3 (or Tray 4)
  5. Try printing a few test pages.
    • If the test pages print successfully, you do not need to continue troubleshooting.
    • If the test page does not print and the paper jam issue persists, elevate the case using the standard support process.
Clear multi-pick or mis-pick jams (in Trays 2, 3, or 4)
If the unit is experiencing multi-pick jams, try replacing the paper in the tray with a new, fresh ream.
If the jams continue, order the Pick tire replacement FRU and send a field engineer on-site to replace the tire and the Separator bar.
   NOTE:
This kit should also be used to fix mis-pick issues in Trays 2, 3, or 4).
For multi-picks or mis-picks in Tray 1 (multipurpose tray), elevate the case using the standard support process.
Part numbers for the Pick tire replacement kit
Tray
Part number
Tray 2
D3Q24-67075
Tray 3
D3Q21-67002
Tray 4
D3Q21-67003
Clear jams at the paper exit (output bin)
Use the following steps to clear a jam in the output bin:
   NOTE:
This is the zone J paper jam area.
  1. Look for jammed paper in the output bin area.
  2. Remove any visible paper.
    Check the eject flap by lifting it with your fingers and examining the rollers for stuck paper. Remove pages if you discover them in this area.
       NOTE:
    Make sure that the output eject-flap is installed and working correctly. If it is missing or broken, replace the flap.

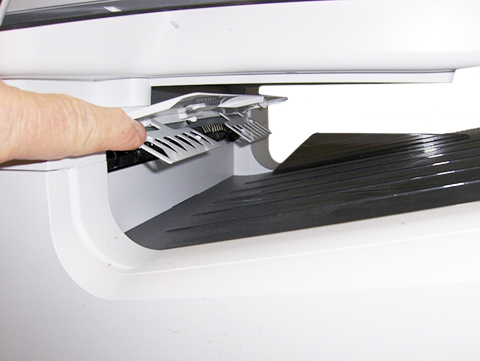

    Figure : Eject flap in the paper exit area
       NOTE:
    If the sheet tears when removing paper, make sure that all fragments are removed before you resume printing.
  3. Open the left door to clear any error messages.
    Figure : Open and close the left door
  4. Try printing a few test pages.
    • If the test pages print successfully, you do not need to continue troubleshooting.
    • If the test page does not print and the paper jam issue persists, continue to the next section to try to clear the jam.
Clear jams in the left door
Use the following steps to clear a jam in the left door:
   NOTE:
These jams occur in zone I, and also might also occur in zones F, G, or H.
  1. Open the left door.
    Figure : Open the left door
  2. Gently remove any visible paper from the rollers and delivery area.
       NOTE:
    If the sheet tears, make sure that all paper fragments are removed before you resume printing.
       CAUTION:
    Do not use sharp objects to remove fragments.
    Figure : Remove the jammed sheet
  3. Close the left door.
    Figure : Close the left door
  4. Test the printer by printing multiple test pages.
    • If the test page prints successfully, you do not need to continue troubleshooting.
    • If the test page does not print and the paper jam issue persists, continue to the next section to try to clear the jam.
Clear jams in the vertical paper path
When a jam occurs in the vertical paper path, a "Paper Jam" message (as shown below) displays on the printer control panel.
   NOTE:
This is where a Zone I jam would be located.
Figure : Paper Jam message
Figure : Location of jams in the vertical paper path
Look for, and carefully remove, any paper on the left side vertical wall.
Clear jams in the lower vertical paper path (including "print zone" jams)
When a jam occurs in the lower vertical paper path, a "Paper Jam" message (as shown below) displays on the printer control panel.
   NOTE:
These jams can occur in the F, G, or H paper path zones.
Figure : Paper Jam message
  1. Remove the ICU/duplexer to clear jams from the F and H zones.
    Figure : Location of jams in the lower vertical paper path (including "print zone" jams)
  2. Drop the platen to clean out any scraps in that area of the printer. When the platen is lowered the unit will try to clear the jam by driving the rollers and pushing paper out the left side of the printer.
    Figure : Lowered platen
  3. Remove all the paper in this area.
  4. Reinsert the ICU/duplexer and close the left door. Touch OK on the user screen to complete the printing.
Clear jams in the "print zone"
When a "print zone" jam occurs, an error message will display on the printer control panel. The message that displays will depend on the firmware version that is currently installed on the unit.
   NOTE:
These jams occur in Zone G in the paper path.
   NOTE:
For troubleshooting purposes, HP recommends upgrading to the newest firmware version as it has an Advanced Jam Recovery feature that assists users in clearing the jam.
To start troubleshooting, first determine the appropriate option in the following list, and then proceed accordingly:
